Used Sheet Metal Brakes, Shears

A FAST AND SPECIFIC VALUTATION ABOUT USED MACHINERY.

To all our customers who wish change their sheet metal machinery we offer the possibility to value their used machinery. We can make valuation about machinery of all kind of brand with the aim to give them the possibility to buy latest generation machinery.

WE GIVE A NEW LIFE TO USED MACHINERY

We have the availability of used machinery stock which are checked and certificated again to guarantee the safety and the functionality. We deal in several brand and we are able to re-qualificate machinery to make them operative again in accordance with the rules in force. We are available for our customers to show them our used machinery stock.

Used sheet metal bending machine 3 m – 150 t

Synchronized 6 axis control Cybelec Dnc 800

Nominal length: 3000 mm
Bending force: 1500 kn
Maximum bending length: 3100 mm
Distance between shoulders: 2600 mm
Recess: 400 mm
Y axis travel: 315 mm
Opening: 500mm
Work table height: 900 mm
Oil capacity: 300 l
Absorbed power: 18.5 kW
Approximate weight: 11.5t

Synchronized sheet metal bending machine 1.5 m – 40 t

3 axes Delem DA 65 w control

Nominal length: 1500mm
Bending force: 400 kn
Maximum fold length: 1550 mm
Distance between shoulders: 1200 mm
Recess: 150mm
Y-axis travel: 150mm
Opening: 340mm
Working table height: 900 mm
Oil capacity: 10L
Absorbed power: 7.5 kW
Approximate weight: 3t

Synchronized 4 axis bending machine 3 m – 100 t

Nominal length: 3000mm
Bending force: 1000 kn
Maximum bend length: 3100 mm
Distance between shoulders: 2700 mm
Recess: 350mm
Y-axis travel: 200mm
Opening: 400mm
Working table height: 900 mm
Oil capacity: 300L
Absorbed power: 11 kW
Approximate weight: 7.2t

Nominal length: 3000mm
Bending force: 1050 kn
Maximum fold length: 3050 mm
Distance between shoulders: 2700 mm
Recess: 350mm
Y-axis travel: 150mm
Opening: 400mm
Working table height: 900 mm
Oil capacity: 150L
Absorbed power: 11 kW
Approximate weight: 8t

Used Vimercati press brake 6 m – 130 t

Nuova Elettronica torsion bar 2 axis positioner
Nominal length: 6050mm
Bending force: 1300 kn
Maximum fold length: 6050 mm
Distance between shoulders: 5700 mm
Recess: 300mm
Y-axis travel: 150mm
Opening: 350mm
Working table height: 930mm
Oil capacity: 400L
Absorbed power: 15 kW
Approximate weight: 20.5t

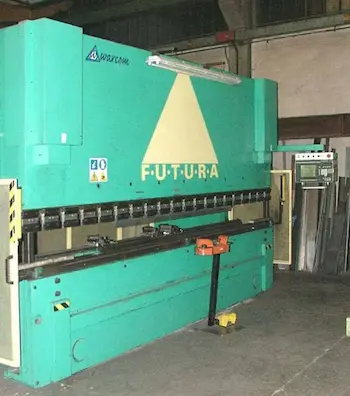

Used sheet metal bending machine Warcom Futura 4 M – 130 T

synchronized 4 axis CNC Esa Kvara 200
Nominal length: 4000mm
Bending force: 1300 kn
Maximum bend length: 4100 mm
Distance between shoulders: 3700 mm
Recess: 400mm
Y-axis travel: 250mm
Opening: 450mm
Working table height: 930mm
Oil capacity: 250L
Absorbed power: 15 kW
Approximate weight: 10.5t

Synchronized 7 axis CNC sheet metal bending machine Task84

Nominal length: 3000mm
Bending force: 1250 kn
Maximum fold length: 3050 mm
Distance between shoulders: 2700 mm
Recess: 400mm
Y-axis travel: 250mm
Opening: 450mm
Working table height: 900 mm
Oil capacity: 300L
Absorbed power: 11 kW
Approximate weight: 11t

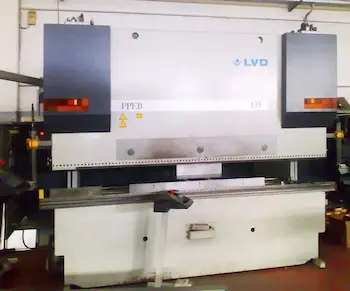

Used sheet metal bending machine LVD PPEB 135

synchronized 6 axis Cybelec control

Nominal length: 3000mm
Bending force: 1350 kn
Maximum bend length: 3100 mm
Distance between shoulders: 2600 mm
Recess: 400mm
Y-axis travel: 300mm
Opening: 500mm
Working table height: 930mm
Oil capacity: 300L
Absorbed power: 15 kW
Approximate weight: 10.3t

• System sensorization

• Smart positioning

• Series of integrations including material loading and unloading

• Automatic tool changer

This robotic island can be fixed in front of the press brake, installed on the ground runway or on a portal so as to allow the use of the press brake even in manual mode.

Used guillotine shear complete with pneumatic sheet support

Nominal length: 3000mm
Cutting capacity: 6/8 mm Fe
Maximum fold length: 3050 mm
Distance between shoulders: 3150 mm
Recess: 500mm
Cutting angle: 1-2.5mm
Register travel: 1000 mm
Working table height: 900 mm
Oil capacity: 120L
Absorbed power: 11 kW
Approximate weight: 9 t

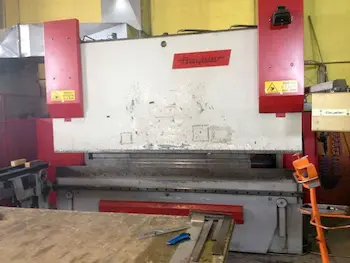

Used press brake Bystronic 3 M – 150 T

Stroke and increased openings synchronized 7 axes Cybelec Dnc 800 control

Nominal length: 3000mm
Bending force: 1500 kn
Maximum bend length: 3100 mm
Distance between shoulders: 2600 mm
Recess: 500mm
Y axis travel: 415mm
Opening: 600mm
Working table height: 900 mm
Oil capacity: 300L
Absorbed power: 18.5 kW
Approximate weight: 13.5t

Used sheet metal bending machine 3M 100 Ton

4 axis CNC Task 84

Nominal length: 3000mm
Bending force: 1000 kn
Maximum fold length: 3050 mm
Distance between shoulders: 2700 mm
Recess: 150mm
Y-axis travel: 200mm
Opening: 400mm
Working table height: 900 mm
Oil capacity: 200L
Absorbed power: 11 kW
Approximate weight: 9 t

Used sheet metal bending machine 3 m – 130 t

synchronized 6 axis control Delem DA 65

Nominal length: 3000mm
Bending force: 130 t
Maximum fold length: 3050 mm
Distance between shoulders: 2720 mm
Recess: 410mm
Y-axis travel: 200mm
Opening: 500mm
Working table height: 950mm
Oil capacity: 280L
Absorbed power: 15 kW
Approximate weight: 11t

Used press brake synchronized 4 axes complete with numerical control Esa mod. 540 with fingerboard and hydraulic camber

Nominal length: 3000mm
Bending force: 1200 kn
Maximum bend length: 3200 mm
Distance between shoulders: 2600 mm
Recess: 500mm
Y-axis travel: 220mm
Working table height: 900 mm
Oil capacity: 200L
Absorbed power: 11 kW
Approximate weight: 12.5t

GADE 3M 100Ton press brake

8 axis Y1-Y2-X-R-Z1-Z2-X1-X2

Year 2012
Pneumatic clamping: top / bottom
